Description

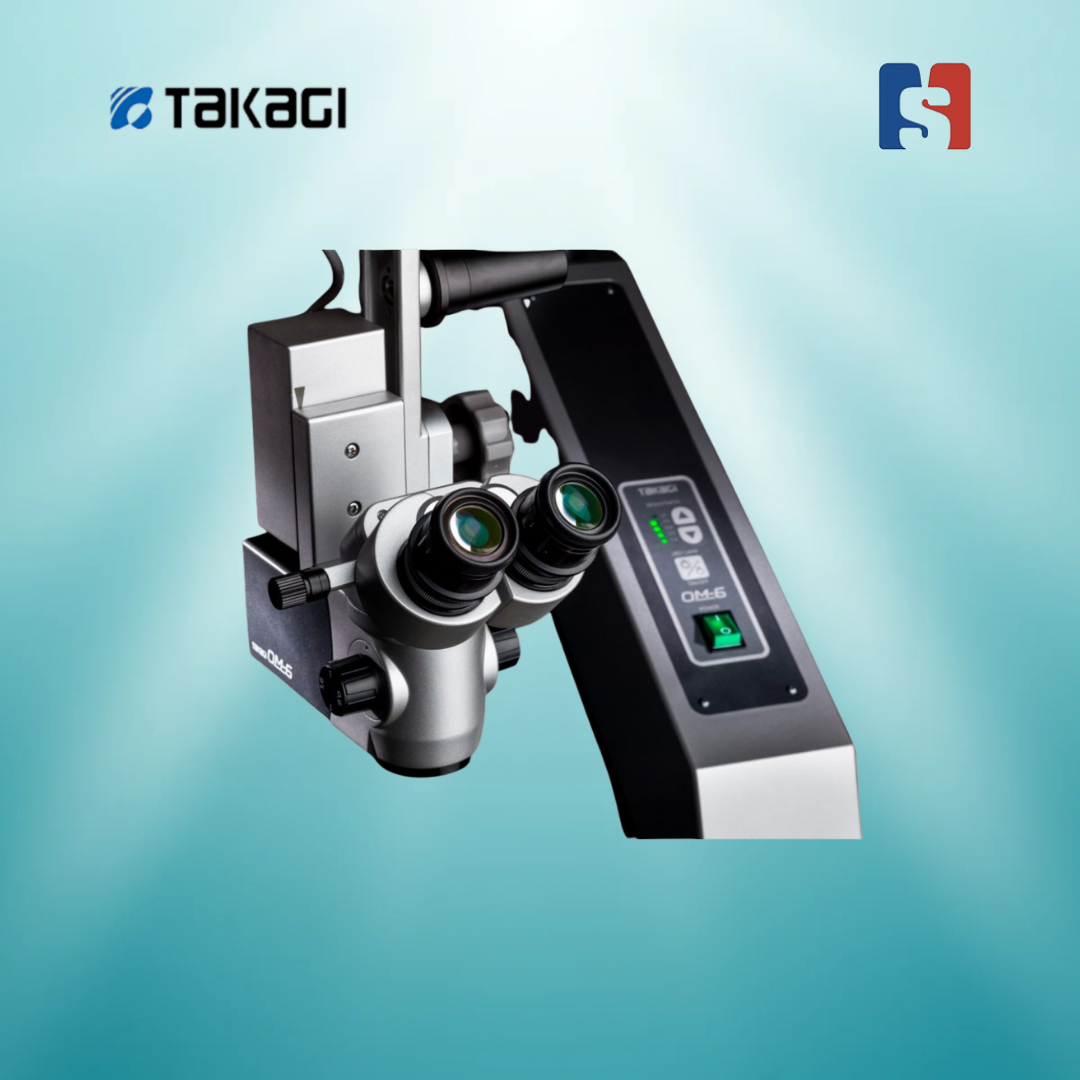

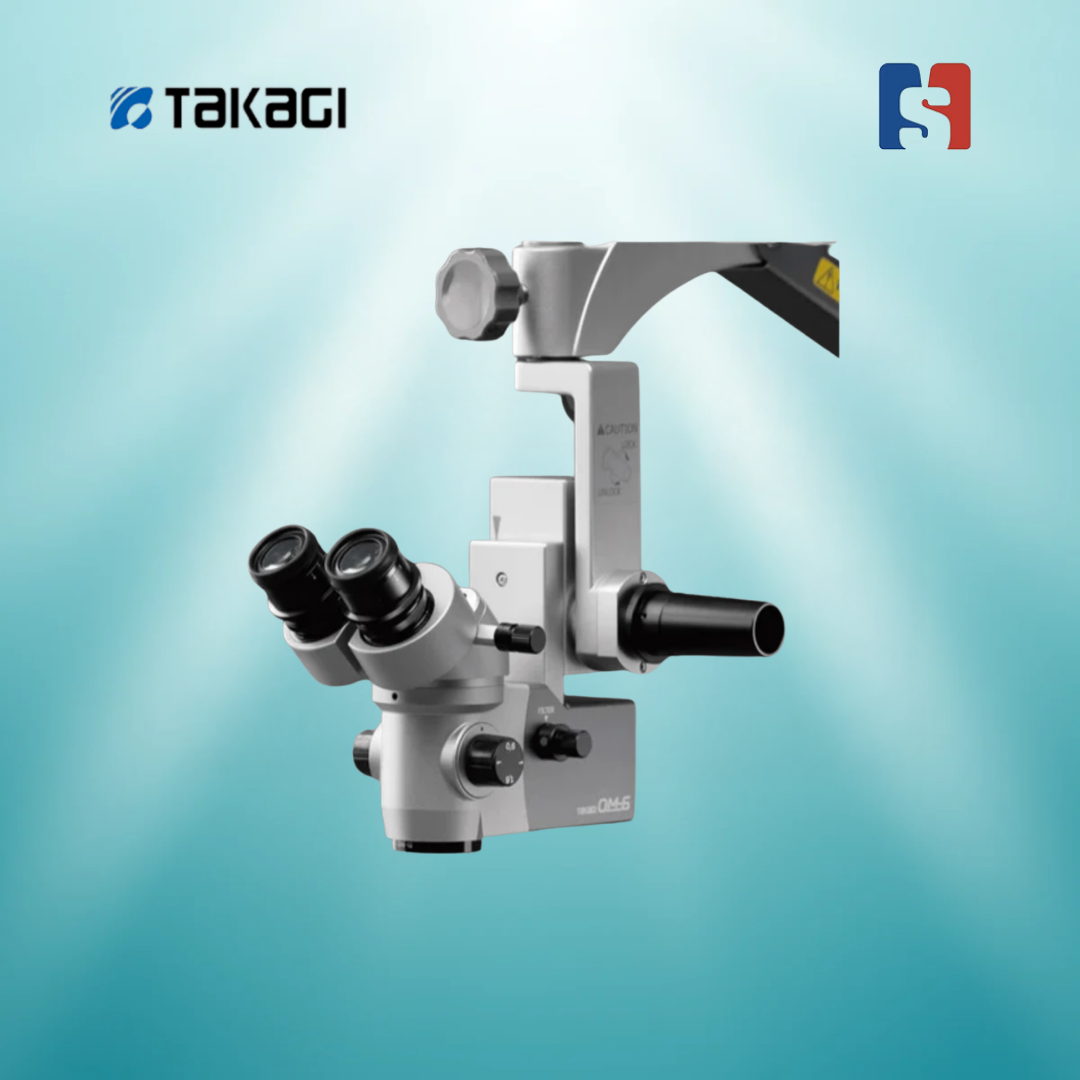

Model Name: | OM-6 Operating Microscope |
Magnification changer | 3 step manual magnification (0.6x / 1.0x / 1.6x) |
Objective lens | F = 200 mm |
Eyepieces | 12.5x (high-eyepoint & wide-field) |
Field of view (diameter) | 48 / 28.8 / 18 mm |
Binocular tube | 45° inclined binocular tubes F = 125 mm |
Total magnifications | 4.7x / 7.8x / 12.5x |
Focusing | 30 mm |
Illumination Method | Direct illumination |
Light intensity adjustment | 9 steps (5 level display on gauge) |
Light source | LED |
Illuminated field (diameter) | 55 mm |
Filters | Heat-absorbing / Blue correction /Blue / Green (red-free) |
Arm & Base Type | Floor stand with 4 casters and 2 stoppers |
Balance arm stroke | 400 mm (vertical) |
Maximum arm reach | 1045 mm |
Maximum load tolerance on arm | Up to 2.4 kg of accessories |
Control panel | Brightness display, light intensity control, ON/OFF switch,power switch |
Footswitch | Wired with focus control,IPX6 waterproof and dust proof performance |
Weight | 62 kg (excluding options) |
Power input | 70 VA |
Power supply | AC 100-230 V, 50/60 Hz |
Electrical Protection class | Class1 |
